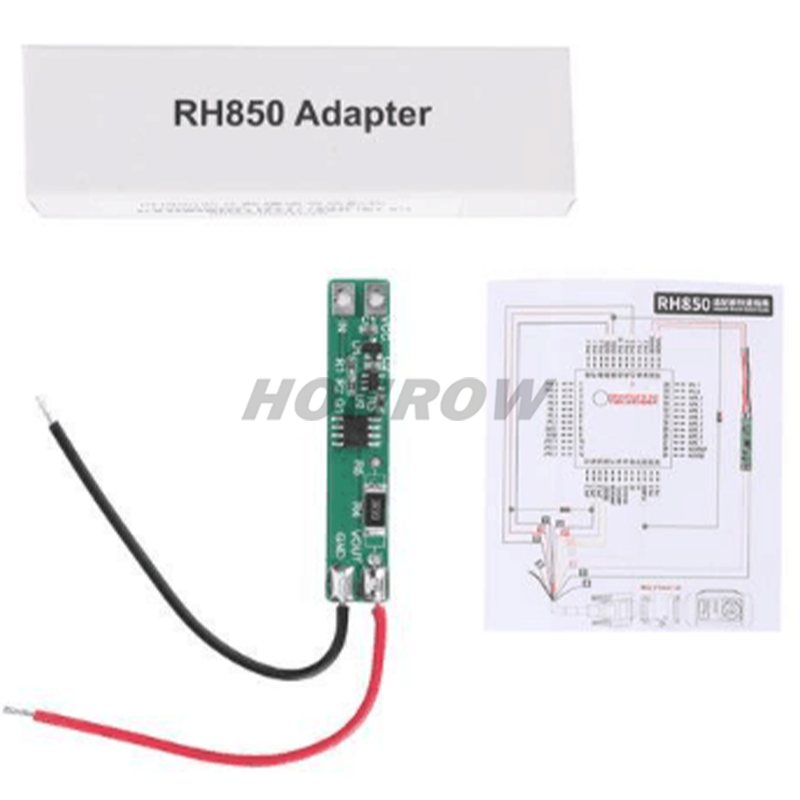

LAUNCH RH850 Adapter for Data Reading & Writing

LAUNCH RH850 Adapter for Data Reading & WritingItem NO.: LAUNCH-22

US$ 11.00
Quantity
Adding to cart succeed
LAUNCH RH850 Adapter for Data Reading & Writing
color:red,size:xxl
Subtotal: US$ 0
View My Cart

Copy and share this link on social network or send it to your friends

Copy
  • LAUNCH RH850 Adapter for Data Reading & Writing
  • LAUNCH RH850 Adapter for Data Reading & Writing



    1.Product Function:
    Applicable to the data reading and writing functions of various RH850_encrypted Renesas microcontrollers.



    2. Supported microcontroller types:
    R7F701002, R7F701003, R7F701006, R7F701007, R7F701008, R7F701009, R7F701010, R7F701011, R7F701012, R7F701013, R7F701014, R7F701015, R7F701016, R7F701017, R7F701018, R7F701019, R7F701020, R7F701021, R7F701022, R7F701023, R7F701024, R7F701025, R7F701026, R7F701027, R7F701028, R7F701029, R7F701030, R7F701032, R7F701033, R7F701034, R7F701040, R7F701041, R7F701042, R7F701043, R7F701044, R7F701045, R7F701046, R7F701047, R7F701048, R7F701049, R7F701050, R7F701051, R7F701052, R7F701053, R7F701054, R7F701055, R7F701056, R7F701057

    Support multiple microcontrollers including pin 48, pin 64, pin 80, pin 100, pin 144, and pin 176.
    Connection method:

    Connect each end of the RH850 adapter board to the MCU and MCU harness according to the following correspondence:

    RH850 Adapter Board MCU MCU Harness
    VOUTISOVCL╳
    GNDISOVSS╳
    VCC╳3
    IN╳5
