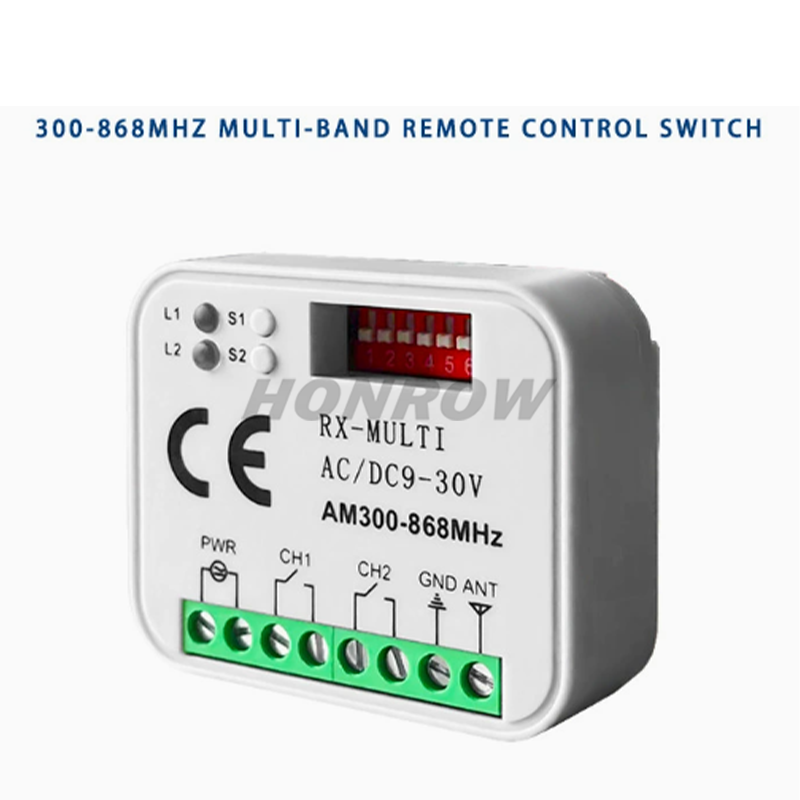

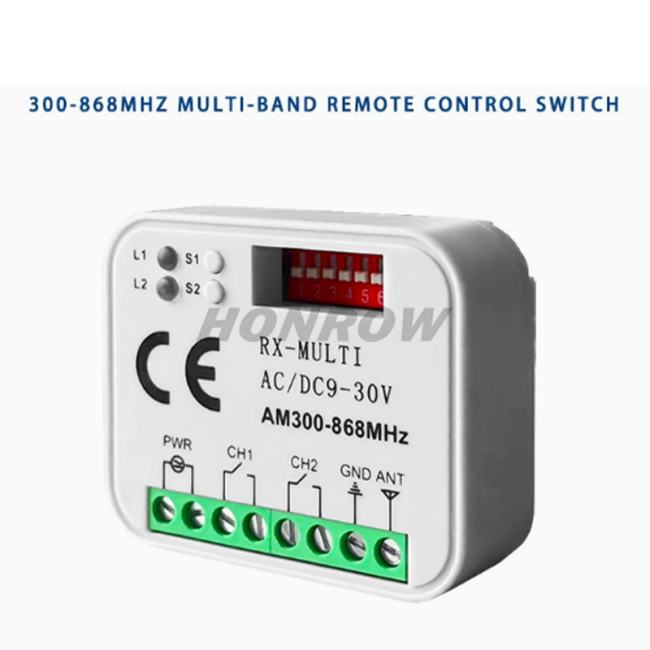

Remote switch Receiver 433MHz 868MHz 390 MHz RX multi-frequency receiver AC/DC 9-30V 300-868MHZ Garage door, water pump control
Specifications:
1)Name: Universal receiver 300-868mhz
2)Operating Voltage: AC/DC 9V-30V
3)Channel: 2.
4)Frequency: 300MHz - 868MHz.
5) Distance: 30-50 meters.
6) Very mini size: 5.5cm*4.5cm*1.0cm.
7) One receiver can work with 400 codes.
8) It don’t interference other remotes and receivers.
9) Brand selector: With 8 dip switches user can make different combination for different remote brands.
10)Code: Rolling and Fixed code & Learning code.
11)Uses: Receiver is designed to control any gate automation system, burglar alarm system, electric doors, windows, lifting equipment, gateways, lifting devices. This is an easy to use, good looking, low power consumption and is easy to connect to your existing system.
12) Power Input Selector: This receiver can work at AC/DC 9V~30V. However, it’s better to change the PIS according to the power input. If the input is great than 24V, shorten pin 2&3; shorten 1&2 if input less than 24V.
Products Features
1.The plastic parts are assembled without gaps, which is connected by split line a looks very perfect.
2.The cover is made of ABS material, the surface with high hardness, good chemical resistance, heat and corrosion resistance and impact strength
3.There is no any flash burr on the cover, the surface is very flat and nice.
4.The key blade is made of copper and processed by vacuum heat. It becomes more resilient and easy to cut.
5.We produce it by high-precision milling machine and the size is very precise.
6.No recycle material.
7.The blade won't rust and scratch hand, the overall looks noble.
