WOYO CTB007 PRO OBD-II Breakout Box (CAN Tester Box)  OBD Cable 150cm

WOYO CTB007 PRO OBD-II Breakout Box (CAN Tester Box) OBD Cable 150cmItem NO.: HKP-56

US$ 84.00
Quantity
Adding to cart succeed
WOYO CTB007 PRO OBD-II Breakout Box (CAN Tester Box) OBD Cable 150cm
color:red,size:xxl
Subtotal: US$ 0
View My Cart

Copy and share this link on social network or send it to your friends

Copy
  • WOYO CTB007 PRO OBD-II Breakout Box (CAN Tester Box) OBD Cable 150cm
    • Product Name: WOYO CTB007 PRO OBD-II Breakout Box (CAN Tester Box) OBD Cable 150cm
    • Item NO.: HKP-56
    • Weight: 0.6 kg = 1.3228 lb = 21.1644 oz
    • Category: Other
    • Creation Time: 2025-12-19

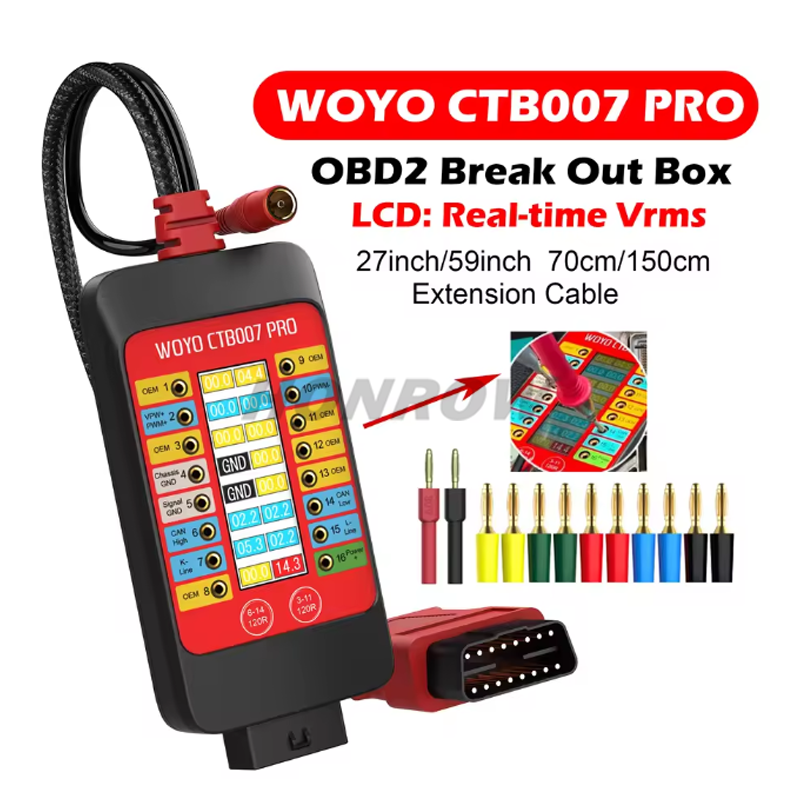

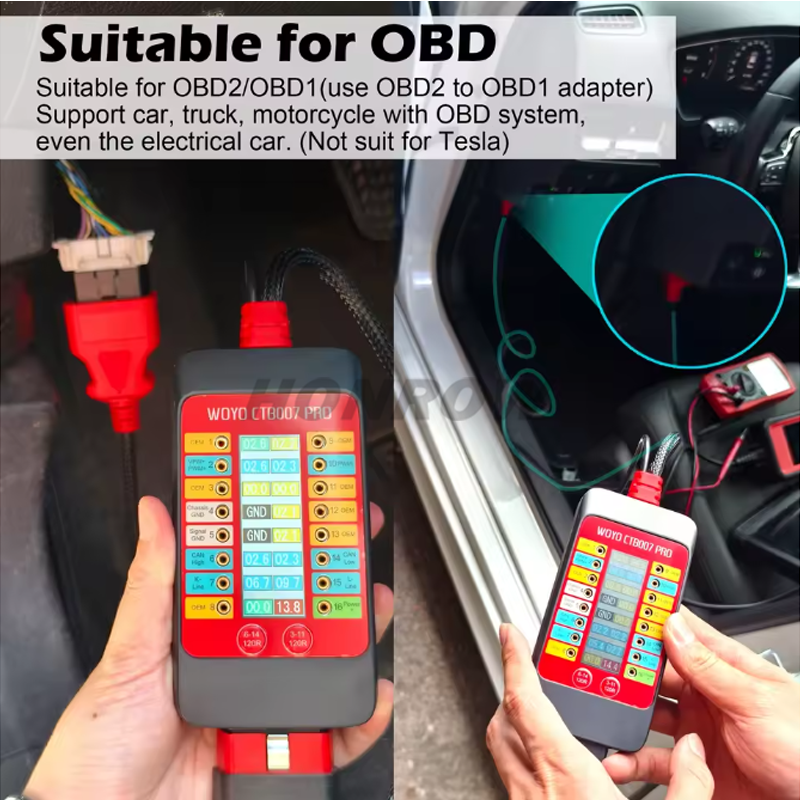

    WOYO CTB007 PRO OBD-II Breakout Box (CAN Tester Box)  OBD Cable 150cm




    万用跳线盒数显款
    Features:
    1. 12 V / 24 V Compatible Circuit Tester

    Robust design for passenger cars and commercial vehicles.
    2. Real-time OBD-II Pin Voltage Monitor (VRMS / true RMS)
    Power/ground integrity: e.g., pin 16 (+B) and pins 4/5 (grounds).
    Bus activity on CAN / K-Line: checks whether static/dynamic levels look reasonable; a green background indicates dynamic values.

    Pin assignment sanity-check: quickly validates expected wiring on retrofits or suspect harnesses—replacing basic VPP voltage checks.

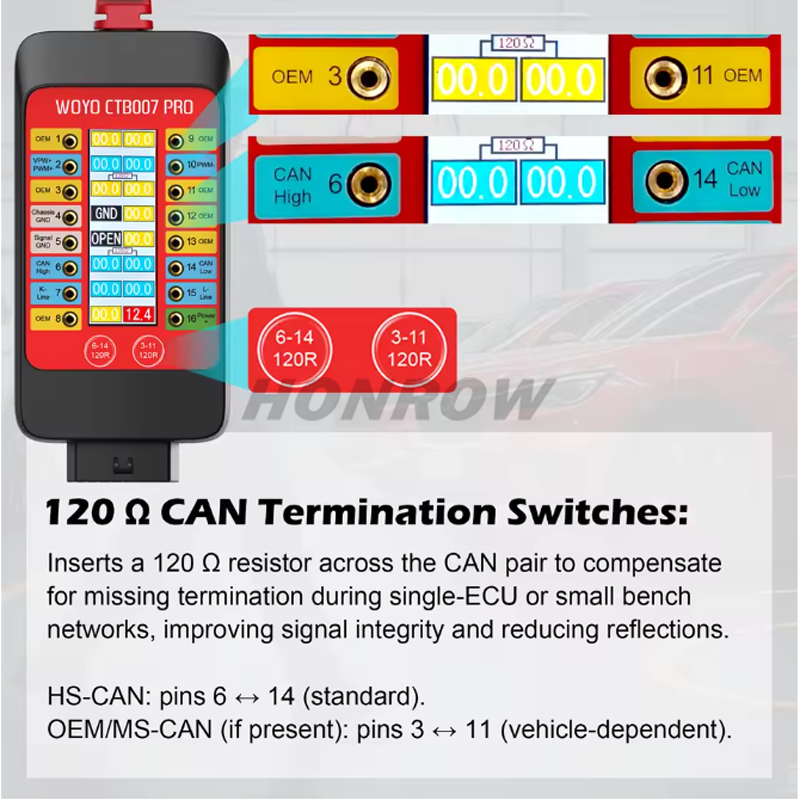

    3. 120 Ω CAN Termination Switches

    Inserts a 120 Ω resistor across the CAN pair to compensate for missing termination during single-ECU or small bench networks, improving signal integrity and reducing reflections.

    HS-CAN: pins 6 ↔ 14 (standard).

    OEM/MS-CAN (if present): pins 3 ↔ 11 (vehicle-dependent).

    Use termination only for bench/missing-terminator scenarios; keep OFF during normal vehicle use to avoid over-termination.
    4. Bench Testing Support

    Provides convenient connectivity for IGN/START activation or external wake-up tools so ECUs can be powered and exercised on the bench.
    5. Signal Status
    Pin background flashing green = dynamic signal.

    6. High/Low Voltage Audible Alarms
    Low-voltage (slow beep):
    12 V systems: < 11.8 V
    24 V systems: < 23.6 V
    High-voltage (fast beep):
    12 V systems: > 15.5 V
    24 V systems: > 31 V

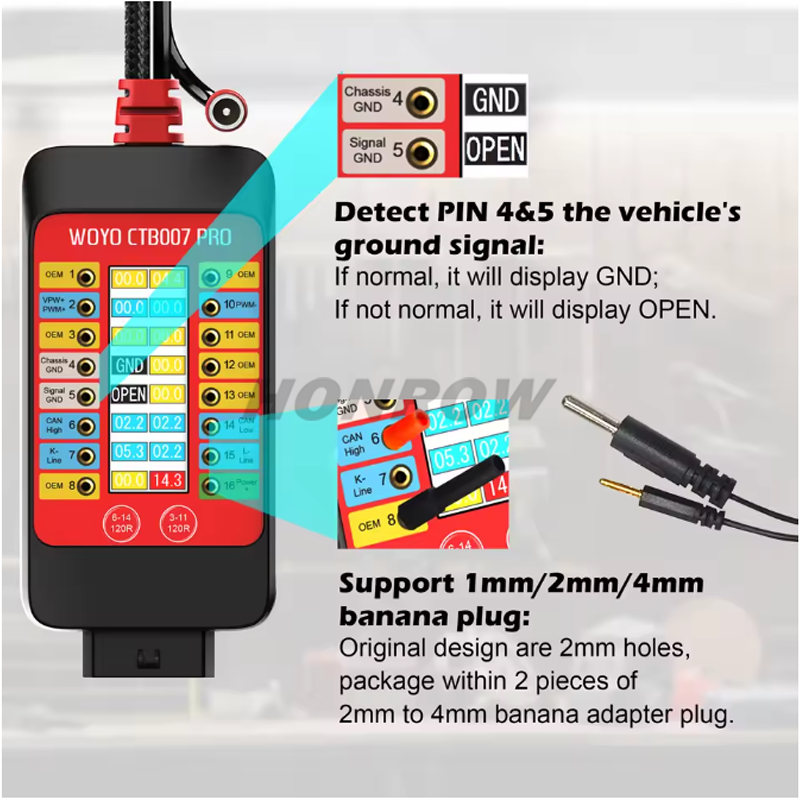

    7. Ground Status Indication

    Pins 4 or 5 show OPEN when no ground is detected, and GND when a valid ground is present.
    8. Quick Jumper Function (Technician Use Only)

    Allows a trained technician to momentarily bridge selected OBD pins via current-limited paths for OEM-approved procedures (e.g., make-specific communication or synchronization tasks).
    9. Battery Replacement Memory Saver

    Maintains vehicle power (12 V/24 V) during battery changes so vehicle settings are preserved.

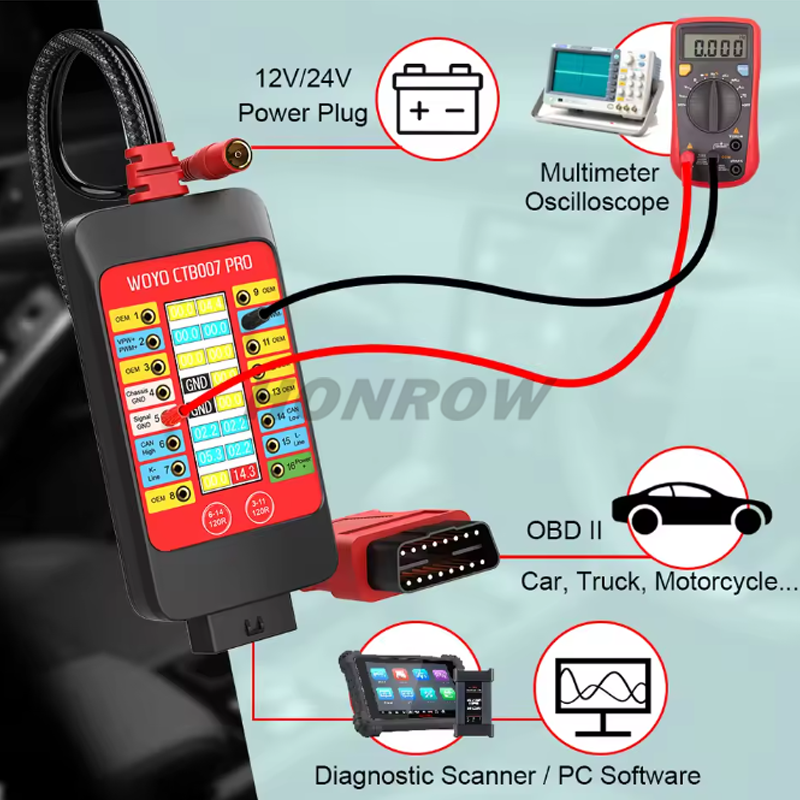

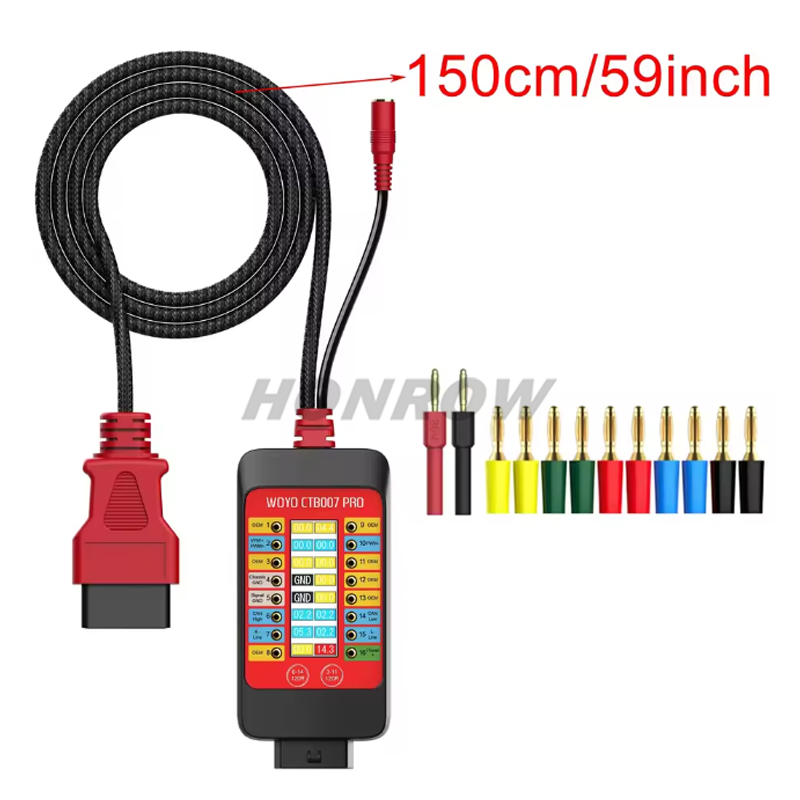

    10. Convenient Connectivity

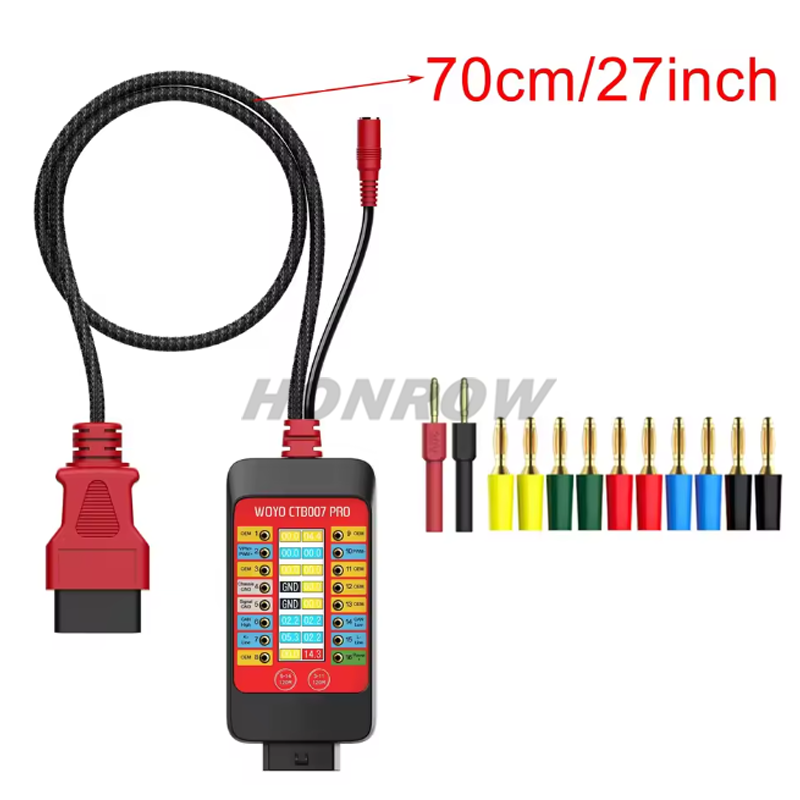

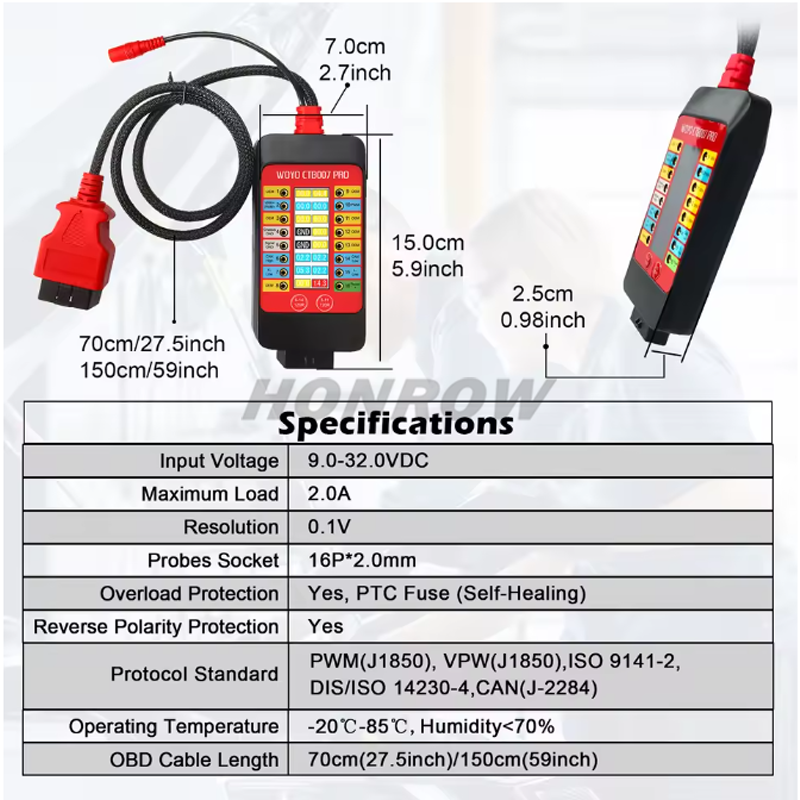

    70 cm extension lead for rapid hookup to other diagnostic/programming tools.

    External power input: 9–32 V DC, barrel 5.5 × 2.1 mm. Select 12 V or 24 V to match the vehicle battery or the module under test.
