Home>Key Programmer 1>LAUNCH Brand>Lanuch X431 GIII IMMO Programmer MCU3 Adapter Board Kit

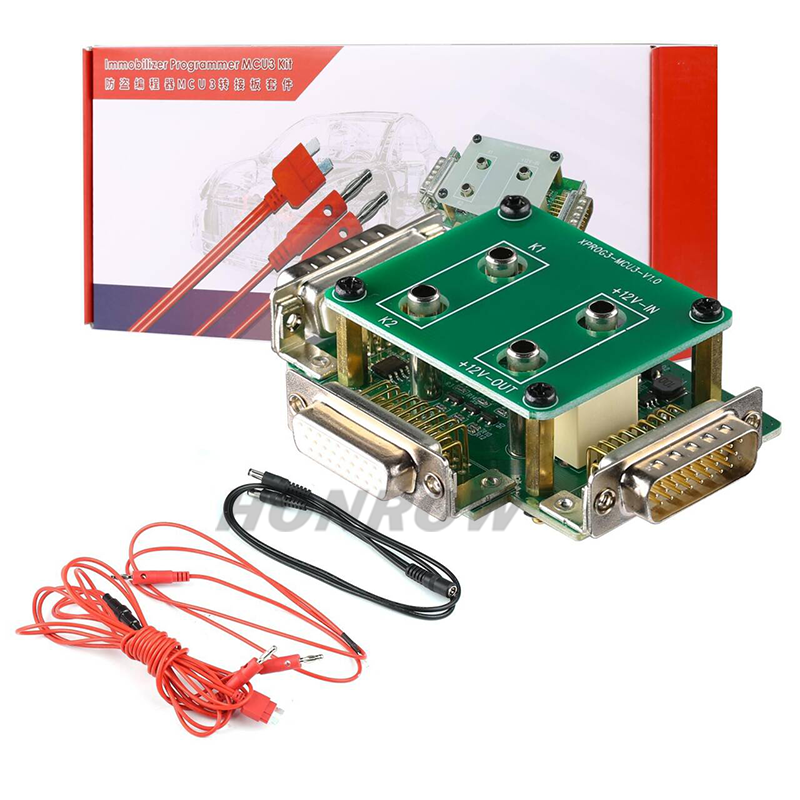

Lanuch X431 GIII IMMO Programmer MCU3 Adapter Board Kit

Lanuch X431 GIII IMMO Programmer MCU3 Adapter Board KitItem NO.: LAUNCH-16

US$ 80.00
Quantity
Adding to cart succeed
Lanuch X431 GIII IMMO Programmer MCU3 Adapter Board Kit
color:red,size:xxl
Subtotal: US$ 0
View My Cart

Copy and share this link on social network or send it to your friends

Copy
  • Lanuch X431 GIII IMMO Programmer MCU3 Adapter Board Kit
  • Lanuch X431 GIII IMMO Programmer MCU3 Adapter Board Kit


    Applications and advantages of the new MCU3 adapter:

    -ADAS Advanced Driving Assist System
    -for Au di for V-W for MQB gearbox replacement
    -for BMW continental msv90 engine ecu replacement and cloning
    -for Peugeot Key Programming
    -for Merce-des Ben-z transmission deleted and operating instructions vgs nag2 vgs2 nag2 and vgs3 nag2
    -for Merce-des Ben-z w164 2009 Key Programming
    -for Volks-wagen / for Audi 5th generation engine reading engine data via direct connection and online programming and coding
    -for BMW E chassis 8hp EGS deleted
    -for BM-W 8hp chassis F and G delete function
    -Key programming cas4/cas4+ all keys lost and adding keys
    -Programming cas1 cas2 cas3 cas3+ lost keys and add key
    -CAS4 immobilizer module replacement
    -Replacement for Volks-wagen / for Audi engine and reading data med17 and edc17
    -for Merce-des Ben-z med9.7 ecu deleted
    -for Volkswa-gen / for Audi Replacement 4th Generation Instrument Replacement
    -Engine replacement for Volks-wagen / for Audi MED17.5.22
    -Programming of lost keys and adding key for Porsche Cayenne 2011 2017
    -Cloning and virginization e39 ac delco
    -Power shift cloning and virginization
    -for Nissan ecu and Tcm conversion and virgin ecu programming and calibrations
    -Special features for Chrysler and registration at autoauth FCA sgw
    -Special features for G-M and for Ford


    When is it can be used?

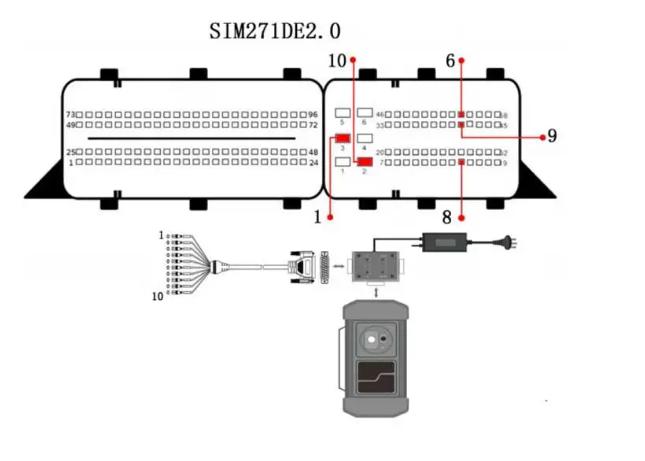

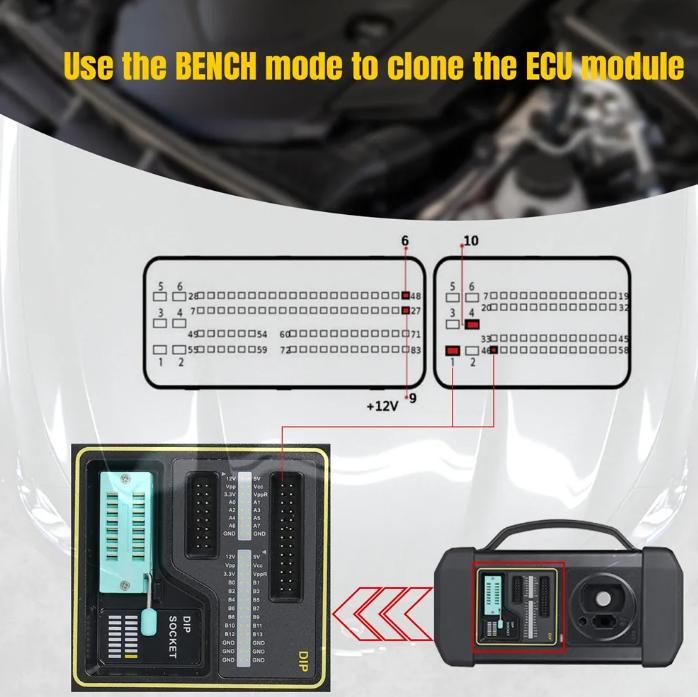

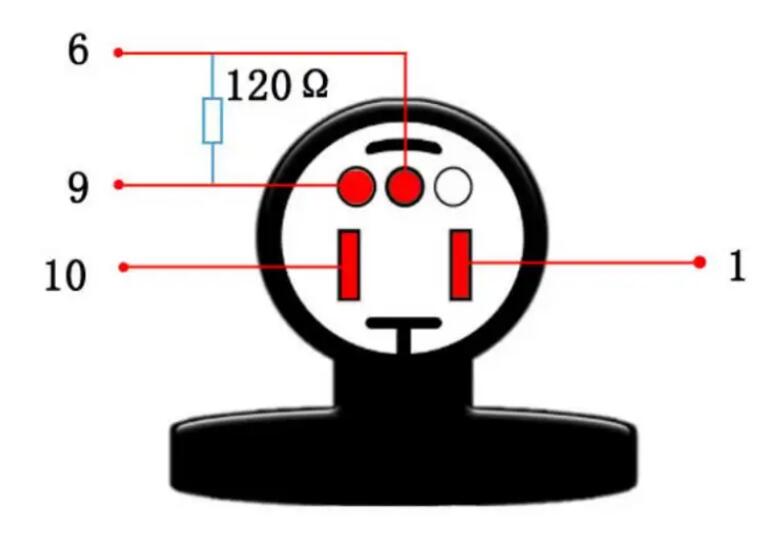

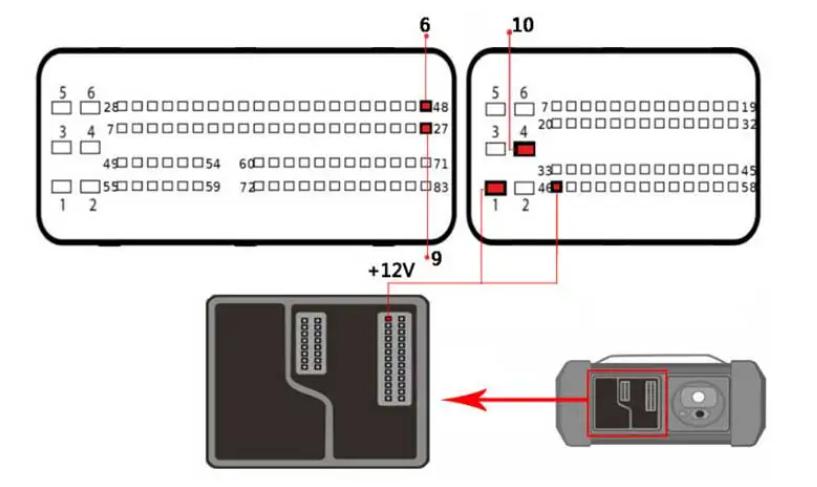

    1. Use the BENCH mode to clone the ECU module, when the 120 ohm resistor is connected as shown in Figure 1, or when the +12V power supply is connected to the IMMO programmer board; the IMMO programmer MCU3 adapter board (with its own power supply) can be used, as shown in Figure


     2.Figure 1:



    Figuire 2:

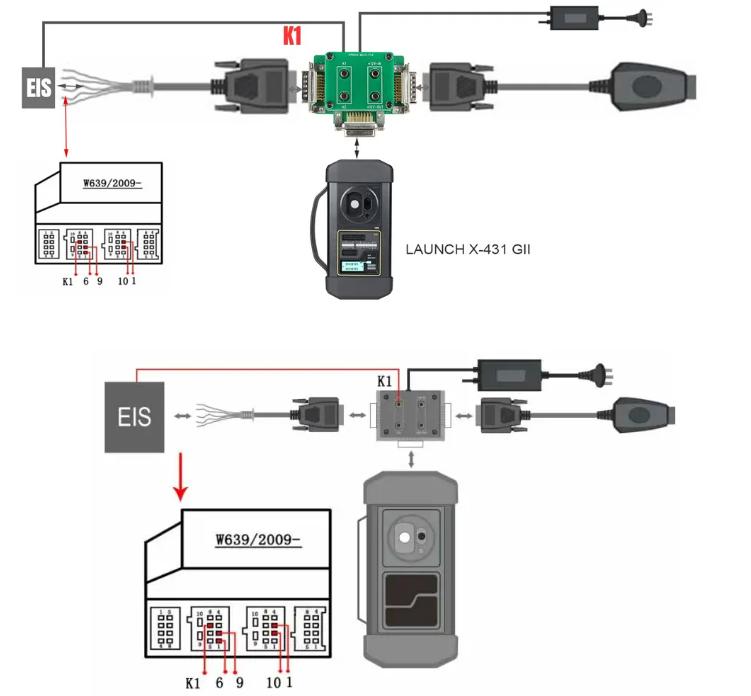

    2. With all keys lost for Merc-edes-Benz, and the connection for key learning is shown in Figure 3 when operating on the platform.

    Figuire 3:
